Applications

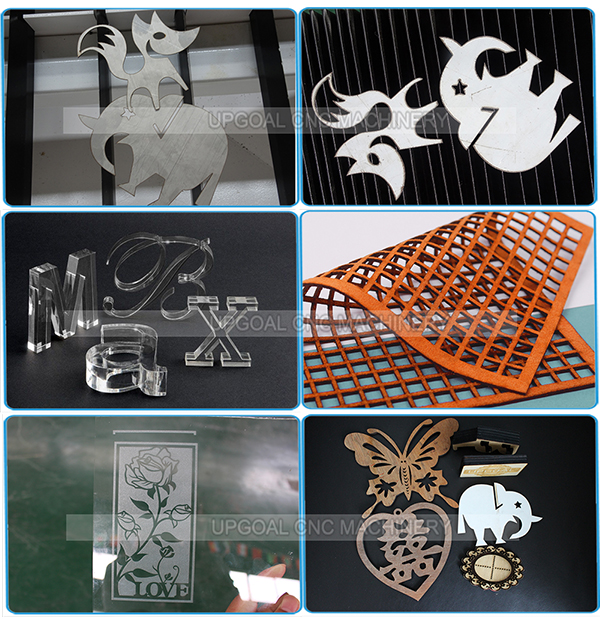

Applied to a certain of metal and non-metal materials Professional engraving/cutting such as stainless steel,carbon steel,wood,organic glass,plastic, cloth.

Widely used in the industry of Advertising, craft gift, shose, toys, garment, model, construction, package, paper and computerized embroidery &lipping.

Features

1.Welding machine bed with quenching treatment to remove away the stress .Milled by Large precision gantry milling machine ensured the accuracy.

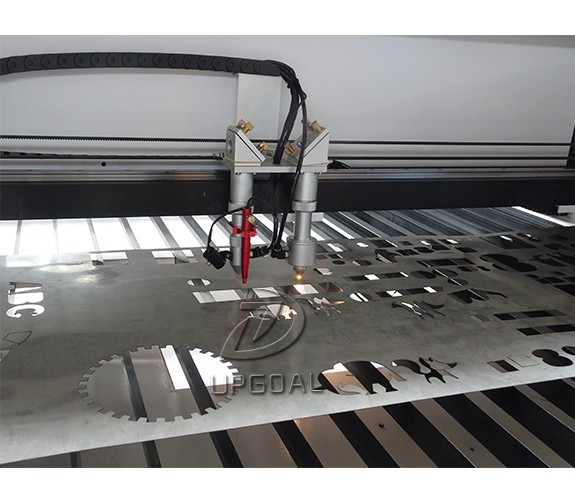

2.Equipped with double economic mixed metal&non-metal cutting head. Stainless steel, carbon steel, acrylic, leather, foam, and wood can be cut.

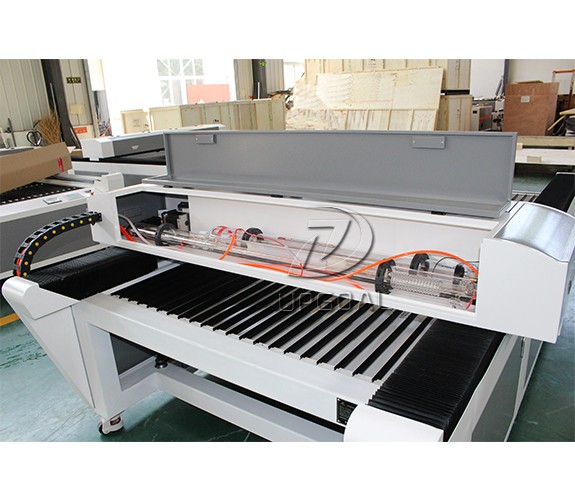

Laser head A1: with Reci W6 130W Co2 laser tube, mainly used for thin 1.2mm thickness metal cutting & thick non-metal cutting, laser head A2: with EFR F2 80W Co2 laser tube, used for non-metal fine engraving cutting.

3. Adopting imported focus lens with high luminous and mirror with high relativity ensure stable power transference and laser beam consistency.

4. High strength Knife Strip Table:  With oxidation treatment and low reflection ratio Ensured cutting quality

5.  Automatic lifting table:with 280mm up-down distance for thick material and rotary device working.

6.Motion System: Imported High precision, low friction force and stand wear and CSK Taiwan linear square guide rail and blocks with 3M belt ensured stable transmission, lower noise

7.With advanced embedded Leetro MPC 8530 DSP real-time mixed metal & non-metal laser cutting control system, running faster, laser intensity and speed automatic matching, perfectly realized the consistency of the corner cutting effect high strength cutting table, applicable for metal and non-metal cutting.

8.Industrial water chiller CW-5202 is equipped to ensure the machine can work last long time.

9.Rationalized placement of the electronic parts. Optimized heat dissipation effect. Ensured system stability and anti jamming capability.
